Parts > Gears > Webtron 650 & 750

Replacement Parts for Webtron

AAA Press International offers an extensive line of Webtron replacement parts. All of our Webtron replacement parts are made to match or exceed OEM specifications.

We carry Webtron impression, die station, stacker and line shaft gears. Most of the items below are in stock and available for immediate shipment. Please contact our knowledgeable parts specialists at (800) 678-7222 or (847) 818-1100 for a consultation to assist you in specifying the proper item for your press.

Webtron 650 & 750 Operator Side Gears

All images © 2004-2015 AAA Press International.




Description

Webtron

Part #

'A' GEAR
1/8CP - 64 Tooth, 20° P.A.

Impression Roll Gear For Webtron 650 / 750

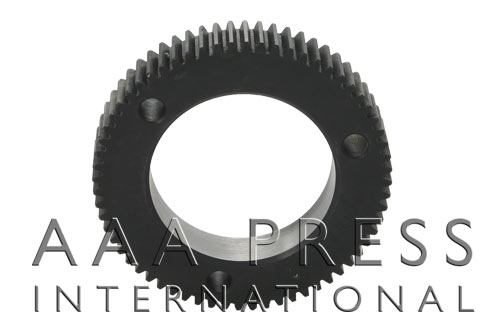

Impression Roll Gear 650 & 750 #9952

Lower Base Roll Gear For Webtron 650 / 750

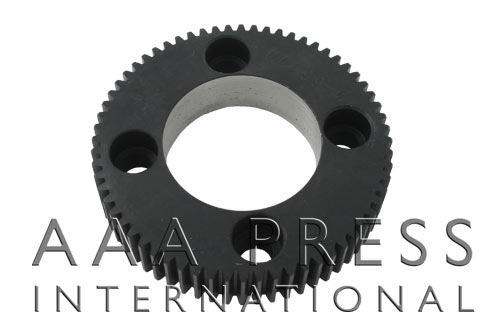

Lower Base Roll Gear 650 & 750 #9954

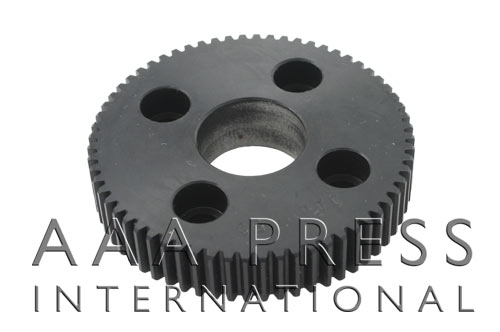

Removable Base Roll Gear For Webtron 650 / 750
Removable Base Roll Gear 650 & 750 #9955

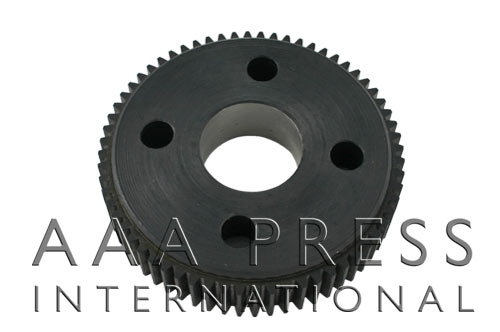

Removable Base Roll Gear For Webtron 650 / 750
Removable Base Roll Gear - .020 oversize 650 & 750 #9109

Die Adapter Gear For Webtron 650 / 750
Die Adapter Gear 650 & 750 #301-0143

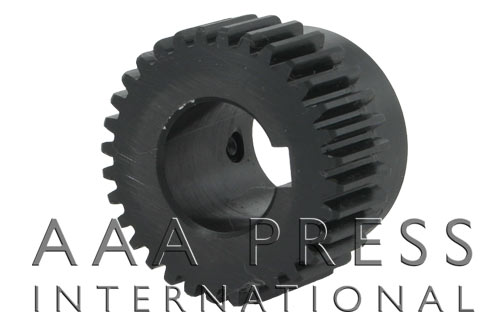

Stacker Gear For Webtron 650 / 750
Stacker Gear 650 & 750 #9958

Intermediate Gear for Stacker For Webtron 650 / 750

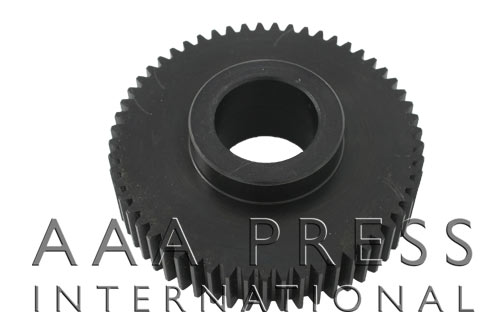

Intermediate Gear for Stacker 650 & 750 #9424

Bearing for Intermediate Gear For Webtron 650 / 750

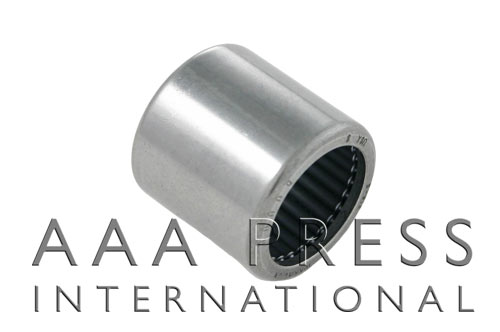

Bearing for Intermediate Gear 650 & 750 #11-4024
'B' GEAR
1/8CP - 64 Tooth, 14-1/2° P.A.

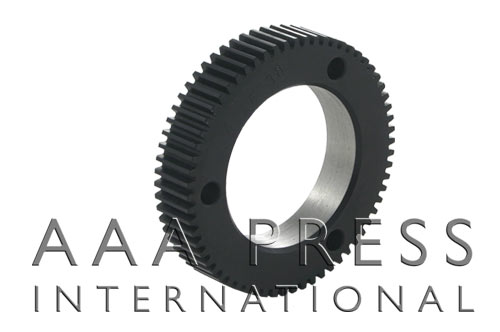

Impression Roll Gear For Webtron 650 / 750
Impression Roll Gear 650 & 750 #6338

Lower Base Roll Gear For Webtron 650 / 750

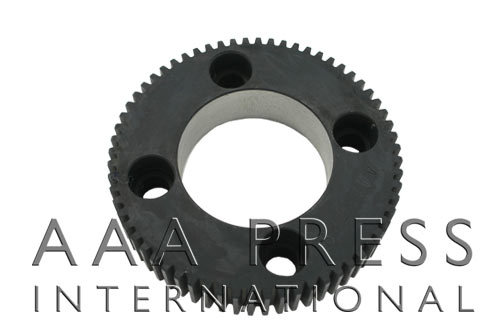

Lower Base Roll Gear 650 & 750 #6788

Removable Base Roll Gear For Webtron 650 / 750

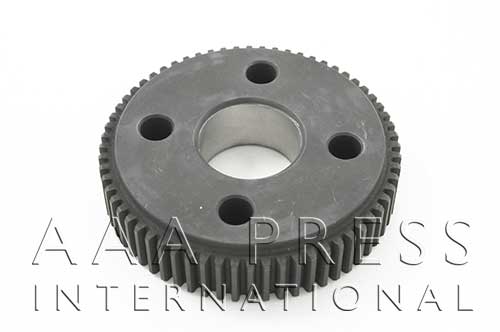

Removable Base Roll Gear 650 & 750 #6792

Rmovable Base Roll Gear For Webtron 650 / 750

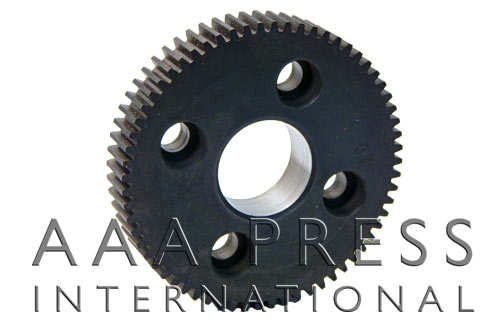

Removable Base Roll Gear - .020 oversize 650 & 750 #9107

Stacker Gear For Webtron 650 / 750

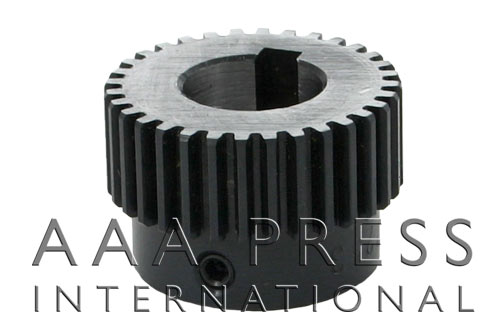

Stacker Gear 650 & 750 #7253

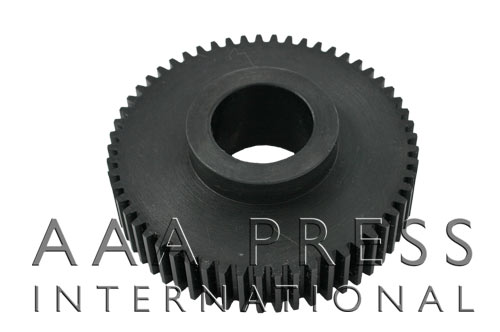

Intermediate Gear for Stacker For Webtron 650 / 750
Intermediate Gear for Stacker 650 & 750 #8299

Bearing for Intermediate Gear For Webtron 650 / 750
Bearing for Intermediate Gear 650 & 750 #11-4024
'C' GEAR
1/8CP - 63 Tooth, 20° P.A

Impression Roll Gear For Webtron 650 / 750

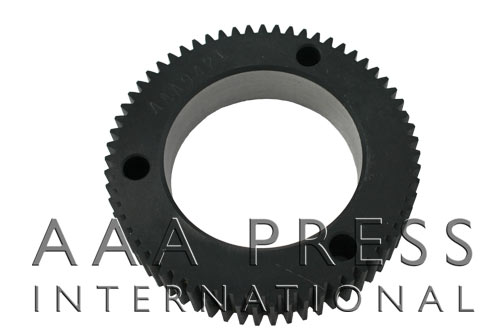

Impression Roll Gear 650 & 750 #9421

Lower Base Roll Gear For Webtron 650 / 750

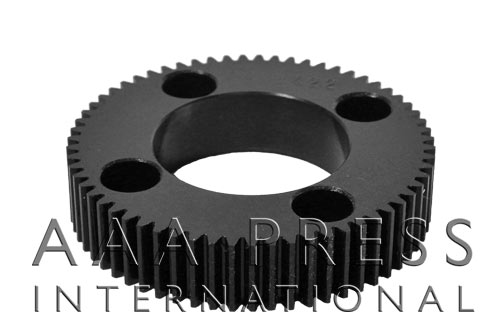

Lower Base Roll Gear 650 & 750 #9422

Removable Base Roll Gear For Webtron 650 / 750

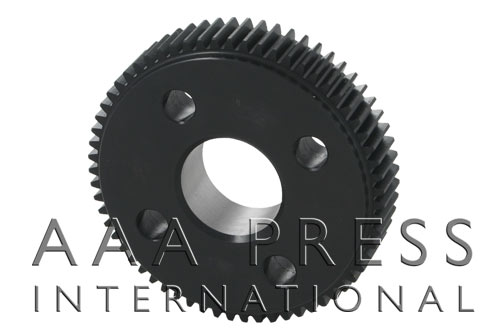

Removable Base Roll Gear 650 & 750 #9423

Removable Base Roll Gear For Webtron 650 / 750

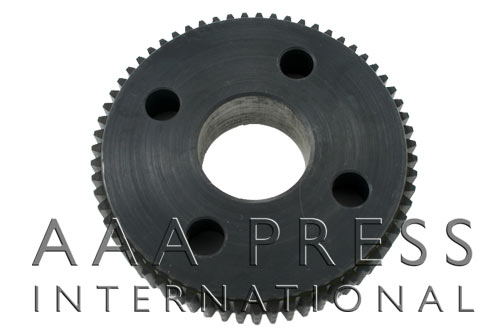

Removable Base Roll Gear - .020 oversize 650 & 750 #9108

Die Adapter Gear For Webtron 650 / 750

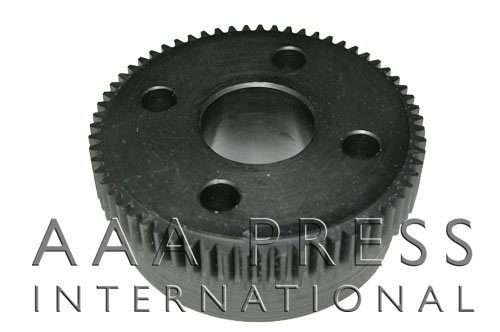

Die Adapter Gear 650 & 750 #302-0143
Stacker Gear 650 & 750 #9425

Intermediate Gear for Stacker For Webtron 650 / 750
Intermediate Gear for Stacker 650 & 750 #9424

Bearing for Intermediate Gear For Webtron 650 / 750
Bearing for Intermediate Gear 650 & 750 #11-4024
'D' GEAR
1/8CP - 63 Tooth, 14-1/2° P.A.

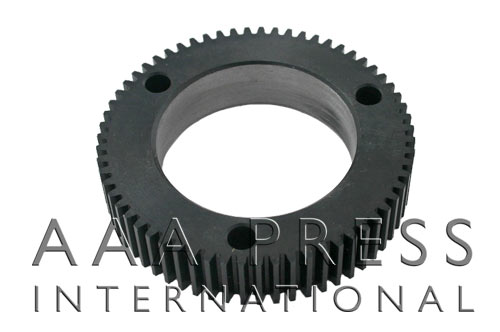

Impression Roll Gear For Webtron 650 / 750
Impression Roll Gear 650 & 750 #6350

Lower Base Roll Gear For Webtron 650 / 750

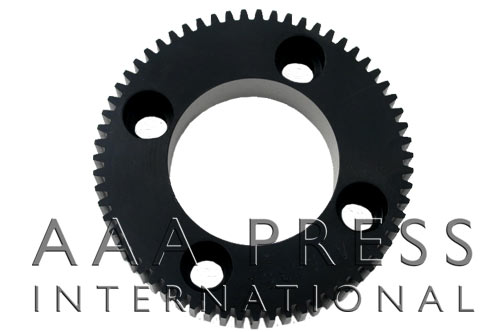

Lower Base Roll Gear 650 & 750 #6351

Removable Base Roll Gear For Webtron 650 / 750

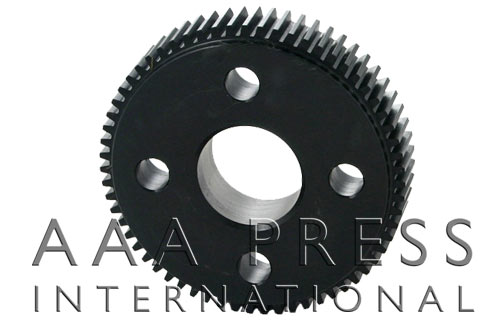

Removable Base Roll Gear 650 & 750 #6352

Removable Base Roll Gear For Webtron 650 / 750

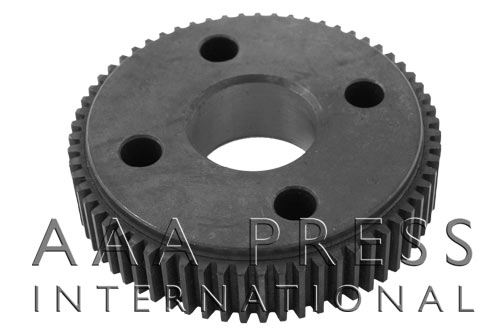

Removable Base Roll Gear - .020 oversize 650 & 750 #9106
Die Adapter Gear 650 & 750 #307-0143

Stacker Gear For Webtron 650 / 750

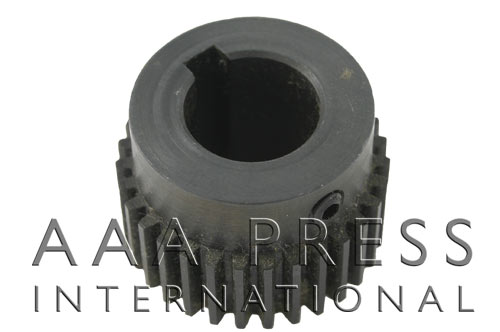

Stacker Gear 650 & 750 #8298

Intermediate Gear for Stacker For Webtron 650 / 750
Intermediate Gear for Stacker 650 & 750 #8299

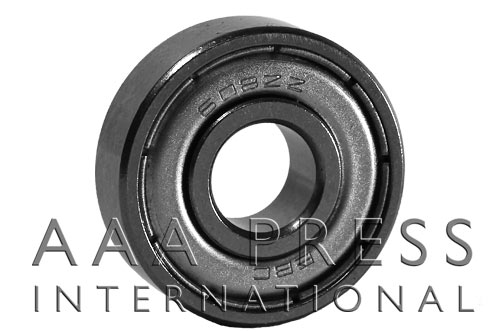

Bearing for Intermediate Gear For Webtron 650 / 750
Bearing for Intermediate Gear 650 & 750 #11-4020
'E' GEAR
1/8CP - 63 Tooth, 14-1/2° P.A.

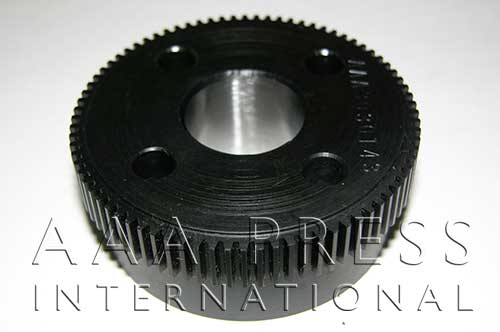

Die Adapter Gear For Webtron 650 / 750
Die Adapter Gear 650 & 750 #303-0143

Impression Roll Gear For Webtron 650 / 750

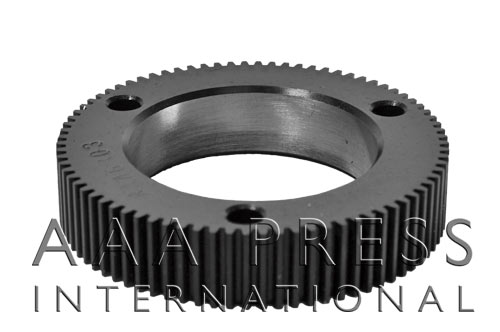

Impression Roll Gear   650 & 750 #6303

Intermediate Gear for Stacker For Webtron 650 / 750

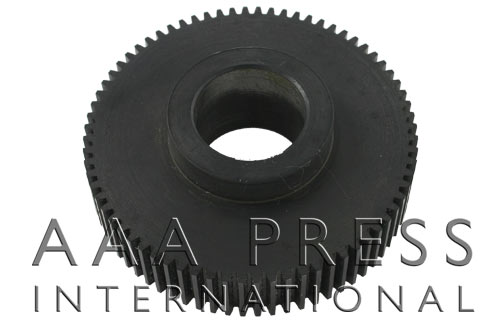

Intermediate Gear for Stacker 650 & 750 #7225

Bearing for Intermediate Gear For Webtron 650 / 750
Bearing for Intermediate Gear 650 & 750 #11-4024

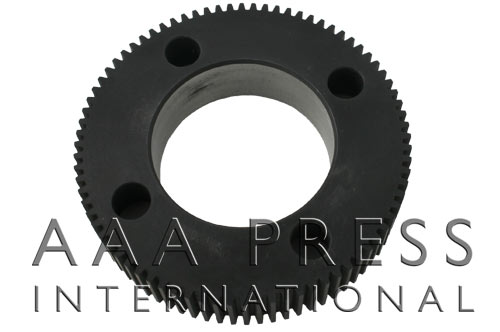

Lower Base Roll Gear For Webtron 650 / 750
Lower Base Roll Gear   650 & 750 #6924

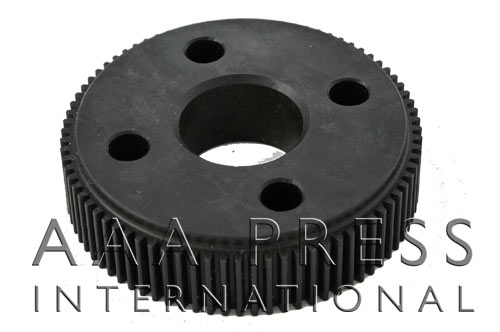

Removable Base Roll Gear For Webtron 650 / 750
Removable Base Roll Gear   650 & 750 #6925

Removable Base Roll Gear For Webtron 650 / 750

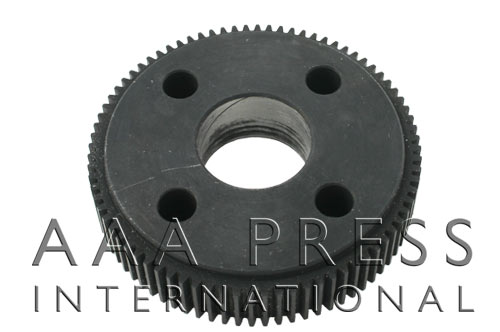

Removable Base Roll Gear - .020 oversize 650 & 750 #9103

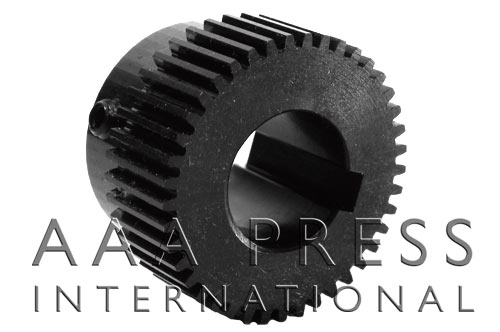

Stacker Gear For Webtron 650 / 750
Stacker Gear 650 & 750 #7224
'J' GEAR
1/16CP - 126 tooth, 14-1/2° P.A.

Impression Roll Gear For Webtron 650 / 750

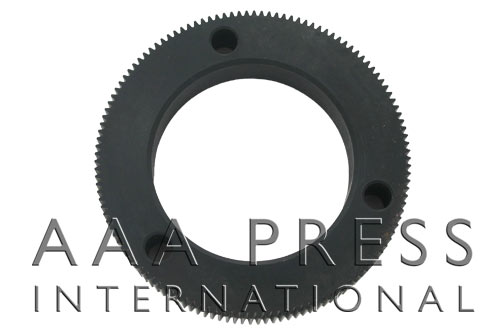

Impression Roll Gear 650 & 750 #6361
Lower Base Roll Gear 650 & 750 #6362
Removable Base Roll Gear 650 & 750 #6363
Intermediate Gear for Stacker 650 & 750 #6364
Removable Base Roll Gear - .020 650 & 750 #6352-S
Stacker Gear 650 & 750 #6365



Webtron 650 & 750 Line Shaft Side Gears

All images © 2004-2016 AAA Press International.




Description

Webtron

Part #

PRINT STATION

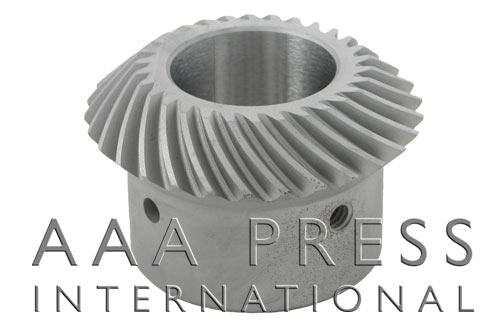

Line Shaft Gear 1-1/4” Bore For Webtron 650 / 750
Line Shaft Gear 1-1/4” Bore 650 & 750 #9686
Line Shaft Gear 1-3/8” Bore 750 #9686-HQV
Taper Pin 650 & 750 #34-4111

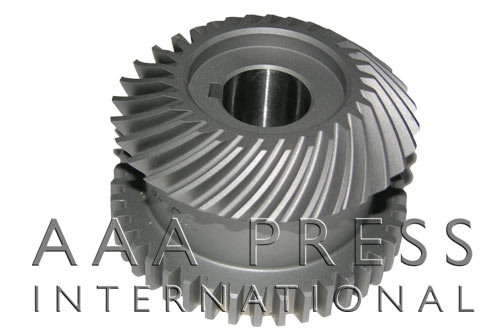

Impression Roll Spiral Bevel For Webtron 650
Impression Roll Spiral Bevel 650 #9697

Impression Roll Spiral Bevel For Webtron 750
Impression Roll Spiral Bevel 750 #101-0134

Anilox Drive For Webtron 650

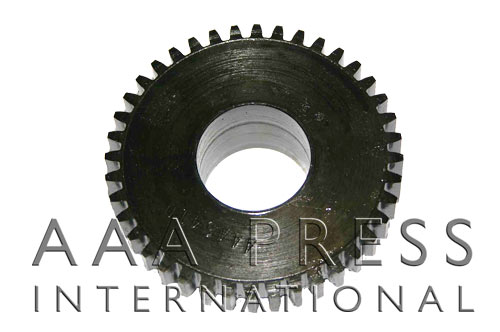

Anilox Drive (2) required 650 #6410

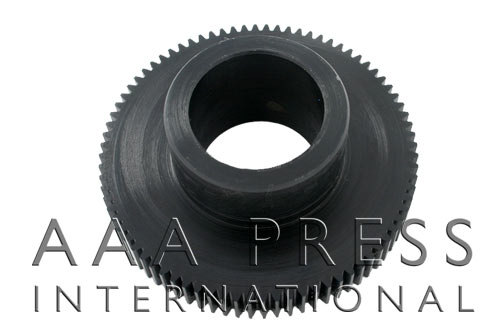

Anilox Drive (2) required 750 #201-0249

Anilox Clutch Bearing For Webtron 650 / 750

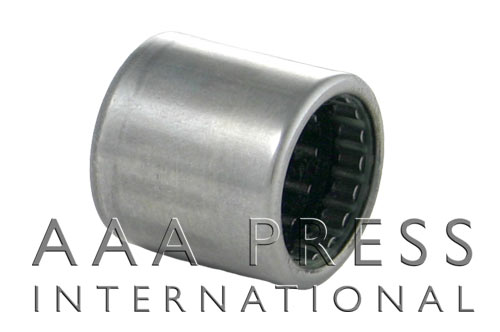

Anilox Clutch Bearing 650 & 750 #11-4011
Anilox Gear Spacer (3) required 650 & 750 #13-4001
Anilox Gear Snap Ring 650 & 750 #44-4476

Dr Roll Drive-Inner Single Shoulder For Webtron 650

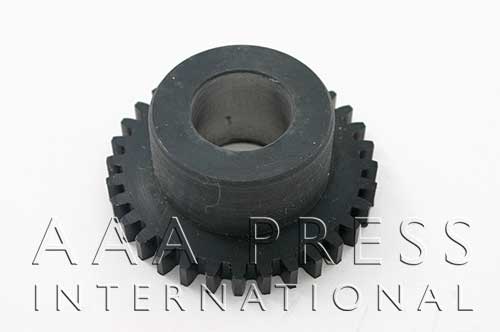

Dr Roll Drive-Inner Single Shoulder 650 #6501

Dr Roll Drive-Inner Double Shoulder For Webtron 650

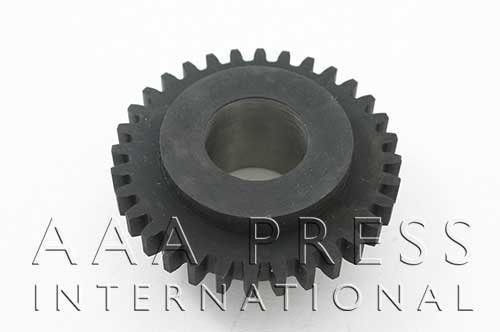

Dr Roll Drive-Inner Double Shoulder 650 #6502

Dr Roll Oilite Thrust Bearing For Webtron 650 / 750

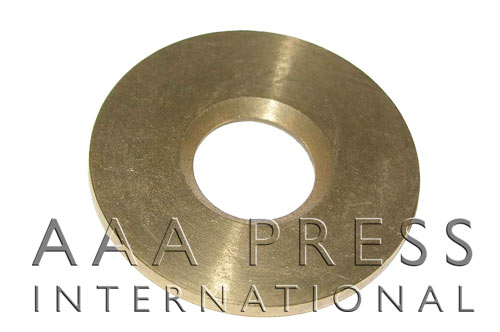

Dr Roll Oilite Thrust Bearing 650 & 750 #6505

Dr Roll Drive-Inner Single Shoulder For Webtron 750

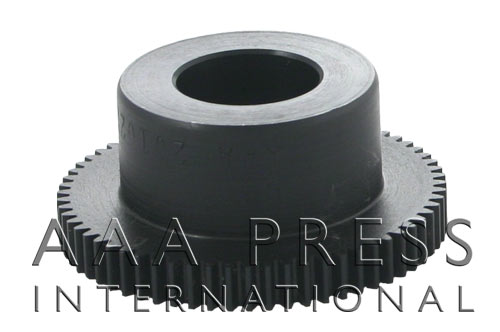

Dr Roll Drive-Inner Single Shoulder 750 #201-0252

Dr Roll Drive-Inner Double Shoulder For Webtron 750

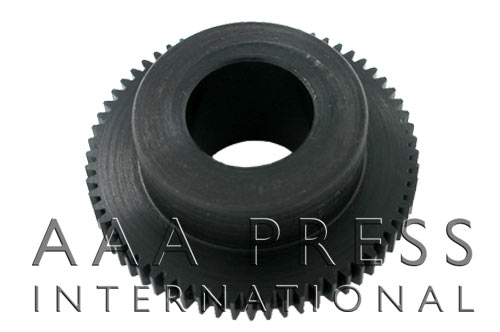

Dr Roll Drive-Inner Double Shoulder 750 #201-0253

Dr Roll Clutch Bearing For Webtron 650 / 750

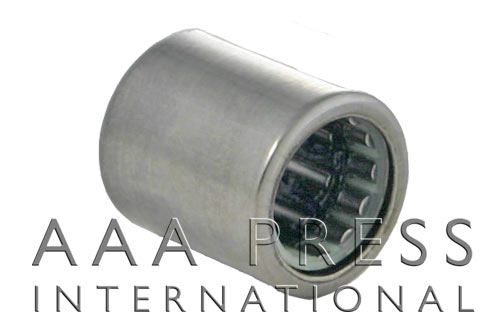

Dr Roll Clutch Bearing 650 & 750 #11-4014
Dr Roll Gear Spacer (2) required 650 & 750 #13-4003
Anilox Gear Snap Ring 650 & 750 #44-4472

PIR Motor Gear For Webtron 650

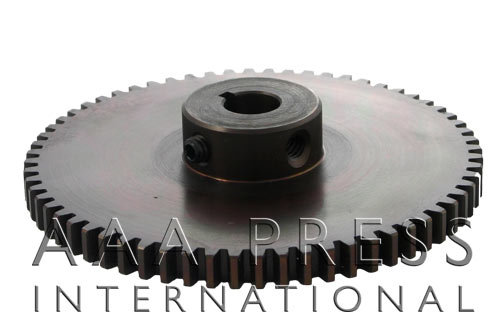

PIR Motor Gear 650 #6412

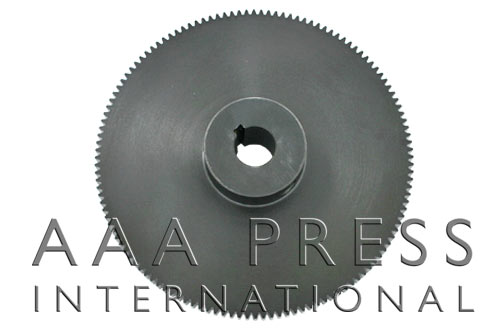

PIR Motor Gear For Webtron 750
PIR Motor Gear 750 #201-0248

Intermediate Idler Gear For Webtron 650

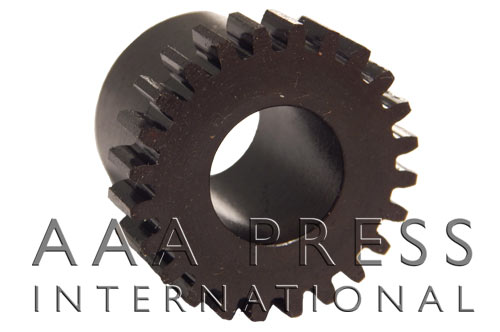

Intermediate Idler Gear 650 #6404

Intermediate Idler Gear For Webtron 750

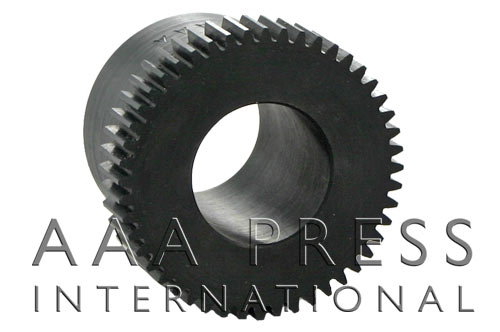

Intermediate Idler Gear 750 #201-0251
Interm. Gear Bearing (2) required 650 & 750 #11-4010
DIE STATION
Line Shaft Gear 1-1/4” Bore For Webtron 650 / 750
Line Shaft Gear 1-1/4” Bore 650 & 750 #9686
Line Shaft Gear 1-3/8” Bore 750 #9686-HQV
Taper Pin 650 & 750 #34-4111

Line Shaft – Miter For Webtron 650 / 750

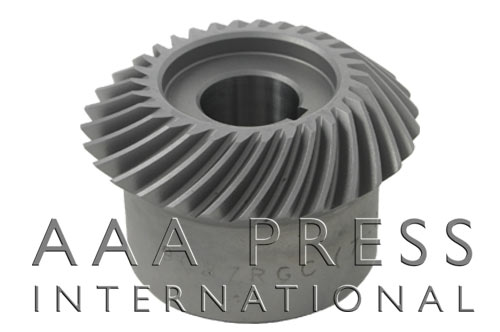

Line Shaft – Miter 650 & 750 #9687

Register Adjust Upper For Webtron 650 / 750

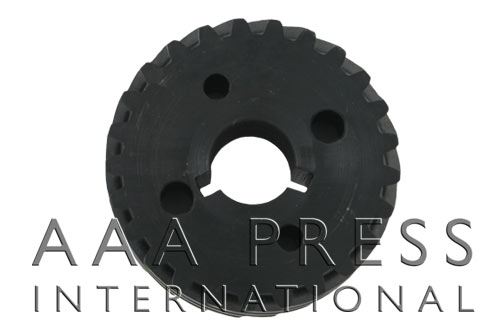

Register Adjust Upper 650 & 750 #6927

Register Adjust Lower For Webtron 650 / 750

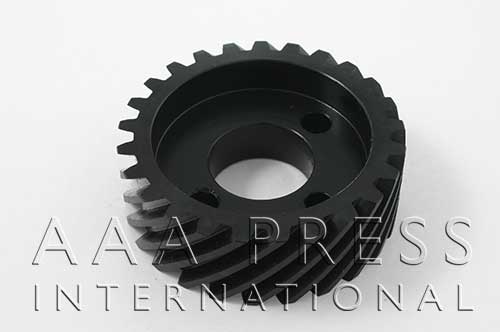

Register Adjust Lower 650 & 750 #6928
SHEETER STATION
Line Shaft Gear1-1/4” Bore For Webtron 650 / 750
Line Shaft Gear1-1/4” Bore 650 & 750 #9686
Line Shaft Gear 1-3/8” Bore 750 #9686-HQV

Line Shaft – Miter For Webtron 650 & 750
Line Shaft – Miter 650 & 750 #9687

Pull Roll Drive 1-1/4” Bore For Webtron 650 / 750

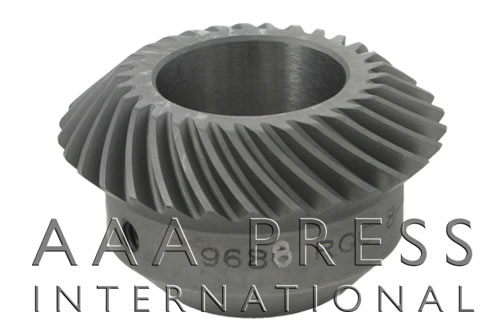

Pull Roll Drive 1-1/4” Bore 650 & 750 #9688
Pull Roll Drive 1-3/8” Bore 750 #9688-HQV
Taper Pin 650 & 750 #34-4111

Register Adjust Upper For Webtron 650 / 750
Register Adjust Upper 650 & 750 #6927

Register Adjus Lower For Webtron 650 / 750
Register Adjus Lower 650 & 750 #6928
LINE SHAFT Line Shaft – 2 color Press   #7757
Line Shaft – 4 color Press   #7759
Line Shaft – 5 color Press   #7760
Line Shaft – 6 color Press   #7761

Line Shaft Bearing 1-1/4” Bore For Webtron 650 / 750

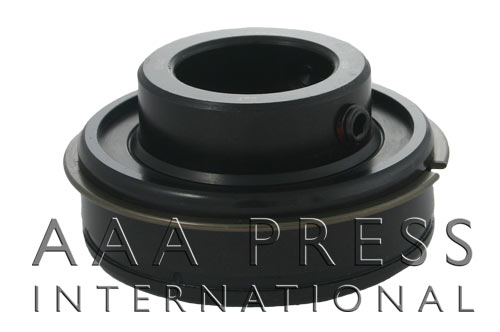

Line Shaft Bearing 1-1/4” Bore   #10-4025

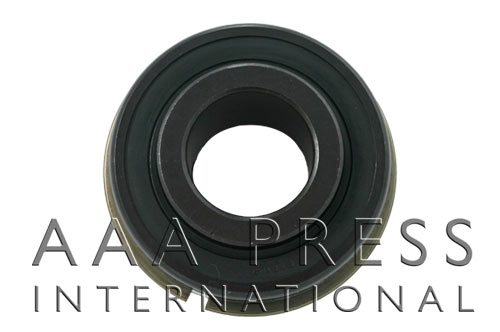

Line Shaft Bearing 1-3/8” Bore   #10-4025 -1/38
Line Shaft Pulley   #71-4104

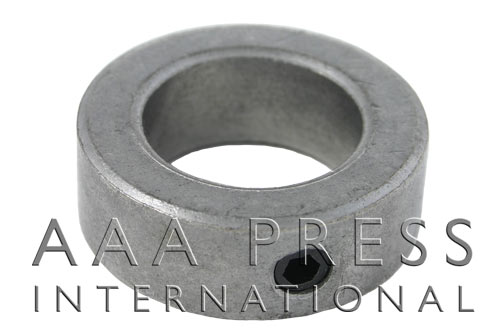

Line Shaft Thrust Collar   #7307

* This list will be updated on a regular basis, but please contact our inside sales department to confirm availability at these prices.
