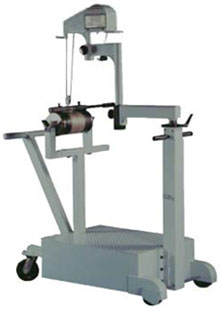

E-Z Hoist Die & Roller Lift by Aztech
Model DL300 Radial Die Lifter - 300 lb Max Capacity Lift
AAA Press International is an authorized distributor of Aztech products.
The Aztech E-Z Hoist DL-300 is a cost-effective solution for lifting, loading and removing rotary dies, rollers from printing and converting equipment. Ergonomically designed, the DL-300 dramatically reduces the risk of damage to the rotary tool during job setup & change-over.
The DL-300 features a compact design with a maximum lifting capacity of 300 lbs. (136Kg). It includes 360° tool rotation using a heavy-duty swivel arm & dual pivot points for significant horizontal reach. It can be easily mounted to converting equipment with a simple 4-bolt bearing block assembly. The DL-300 can be easily removed and mounted on to our precision MP-200 (200lb./90 Kg) or MP-400 (400 lb./180Kg) mobile platforms for effortless mobility around your work environment. Both the MP-200 and MP-400 mobile platforms are equipped with one additional 360° pivot point to insert tooling in to the most difficult locations. A rubberized cradle mount safely holds rotary tools in place during transport and heavy-duty precision casters allow for effortless movement around the shop floor.
E-Z Hoist Model DL-300 features
- Reduces operator injuries and fatigue
- Eliminates expensive die and roller damage
- Improve productivity and profitability
- Minimize material damage
The system includes: die lifter, die bar (specify die length), straps (for secondary method for removing dies) and mounting bracket.
E-Z Hoist Model DL-300 specifications
- 300 lb (136 kg) maximum capacity lift
- Dual pivot point 360° rotation
- Hoist may be easily removed and re-located
- Standard and custom die bars for easy lifting and maneuvering;
Standard sizes include 13”, 16” or 19” bar which correspond to press size
- Straps are included (secondary method for removing dies)
- One mounting bracket included
- Die handle
- Easy hand crank for gentle & precise lifting
- Long cable length for lifting from floor level
- Safe lifting with integrated automatic winch braking system
May be operated with press mounting blocks or Model MP-200 or MP-400 mobile platforms. Additional mounting blocks and die bars available.
